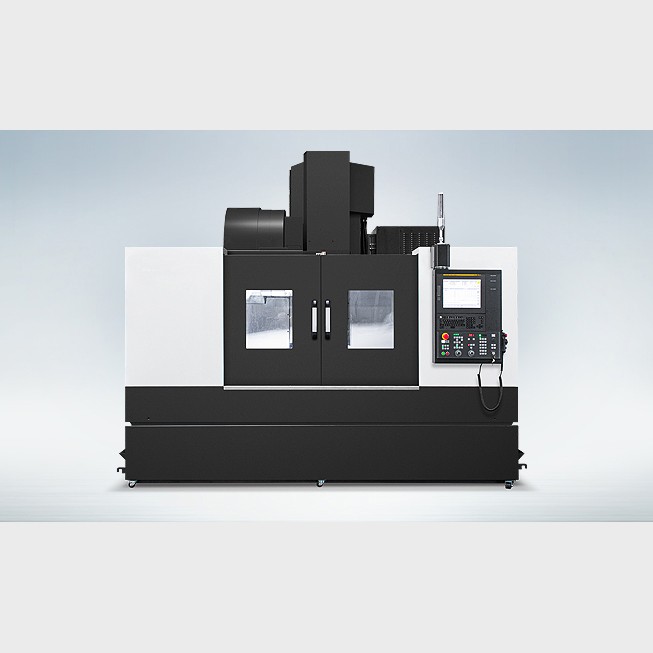

KV56LMAX High Speed Machining Center

Product Item：KV56LMAX

Table Size: 1500×560mm

Travel(X/Y/Z): 1300/560/520mm

Spindle Taper: BBT40

No. of Tools: 30EA

Description

Features

- High-precision machining by improved spindle quality
- High-speed roller type LM guide in all axes
- Enhanced chip disposal capabilities by applying the upper-type conveyor
- Various motors and columns provided for customized machining
- Improved user convenience by applying the latest controller of FANUC

Specifications

Units of Measure: mm

Description	Unit	KV56LMAX
Table Size	mm	1500×560
Max. Load Capacity	kg	1,000
Spindle Driving Method	-	Direct
Spindle Taper	-	BBT40
Spindle RPM	r/min	8,000
Spindle Power	kW	18.5/11
Spindle Torque	N.m	118/52.5
Travel(X/Y/Z)	mm	1300/560/520
Rapid Feed Rate(X/Y/Z)	m/min	36/36/30
Slide Type	-	LM
No. of Tools	EA	30
Tool Change Time (Chip To Chip)	sec	3.5
CNC	-	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
