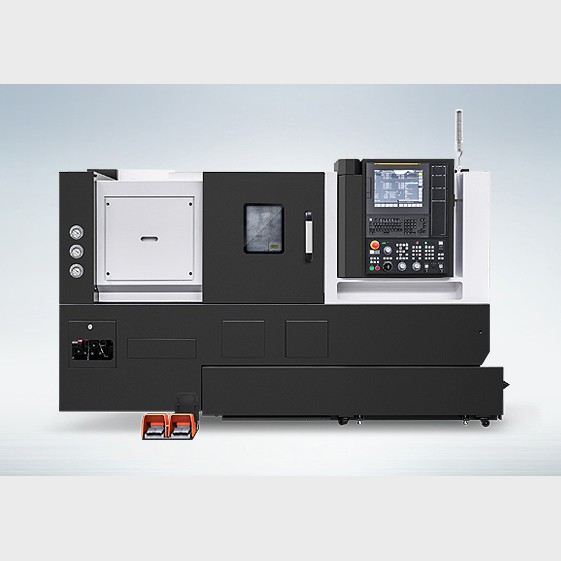

TC22LC TC22LMC Turning Centers Compact

Product Item：TC22LC TC22LMC

Max Turning Dia: 350mm/300mm

No. of Tools:12ea

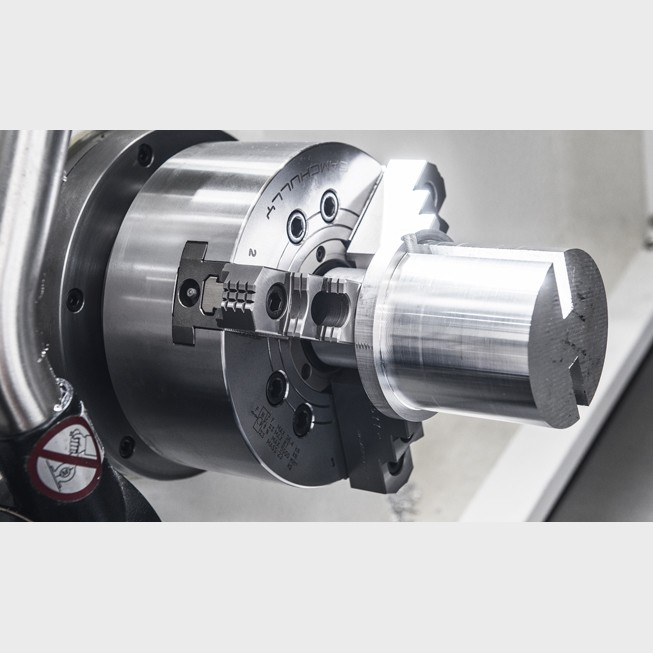

Chuck Size: 10''

Spindle RPM:3,500r/min

Description

Features

- - - - 30° slanted one-piece bed structure with high rigidity

        Ensured high-rigidity applying Roller guideway on all axes (X/Z-axis: 30/36m/min)

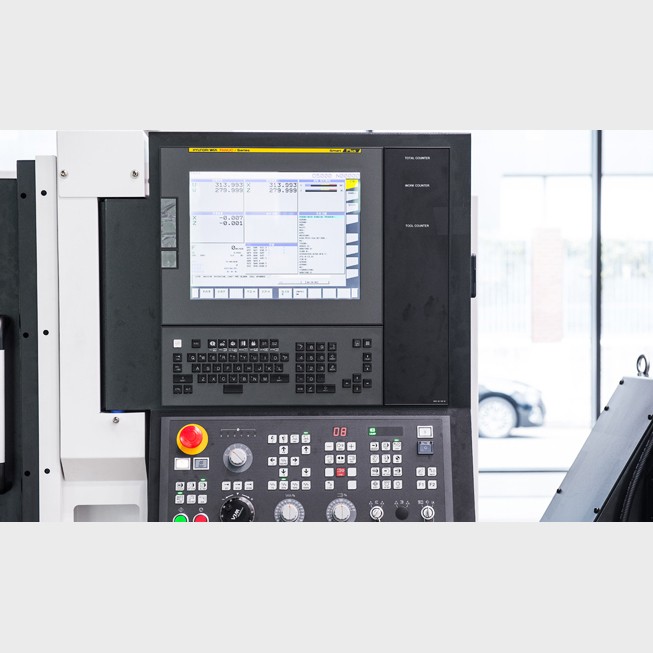

        Improved user convenience by applying the latest controller of FANUC

        Prepared user-oriented lineup including long-bed, mill turret and sub-spindle

        Compact structure with internal-motor design (for standard-type bed)

        Ergonomic design for convenient access to chuck and tool

Specifications

Units of Measure: mm

Description	Unit	TC22LC	TC22LMC
Max Turning Dia	mm	350	300
Max Turning Length	mm	549	499
Chuck Size	inch	10″	10″
Driving Method	-	Belt	Belt
Spindle RPM	r/min	3,500	3,500
Spindle Output	kW	18.5/11	18.5/11
Spindle Torque	N.m	270/120	270/120
Travel(X/Z)	mm	210/560	210/560
Rapid Travel(X/Z)	m/min	30/36	30/36
Slide Type	-	LM	LM
No. of Tools	EA	12	12
Tool Size	mm	25/40	20/32
Milling Tool Speed	r/min	-	6,000
CNC	-	H/W FANUC i	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
