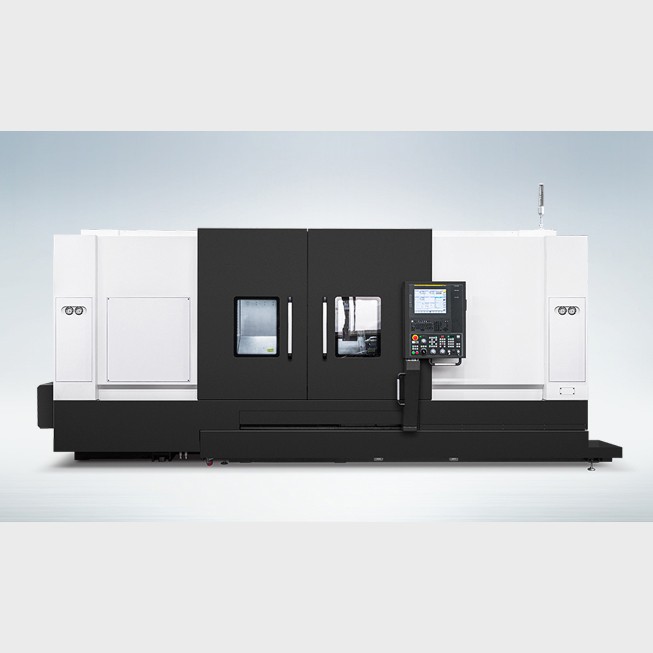

TC50L Multi-Axis Turning Center

Description

Features

• Secures superior rigidity by applying wedge type Y-axis
• Specialized in heavy cutting by applying 2 Step Gear Box Type Main Spindle (Max. Torque 2,990 N·m)
• Secures rigidity with box guideways for each shaft
• Max. Turning Length 2,070 mm Long Bed Structure

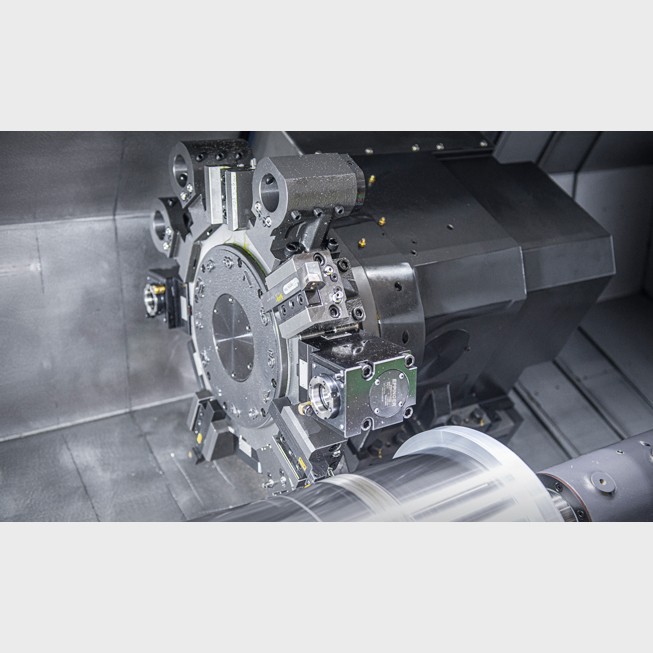

• High-performance Large BMT75 Turret

Specifications

Units of Measure: mm

Description	Unit	TC50L
Max Turning Dia	mm	610
Max Turning Length	mm	2,070

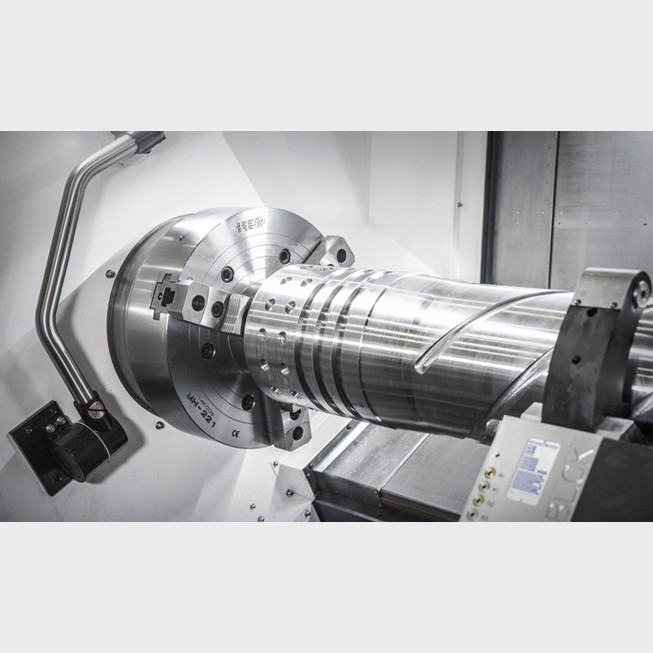

Chuck Size	inch	21″
Driving Method	-	2 Step Gear + Belt
Spindle RPM	r/min	1,500
Spindle Output	kW	45/37
Spindle Torque	N.m	2,990/2,459
Travel(X/Y/Z)	mm	360/150 (±75)/2,120
Rapid Travel(X/Y/Z)	m/min	20/12/18
Slide Type	-	BOX
No. of Tools	EA	12
Tool Size	mm	32/60
Milling Tool Speed	r/min	4,000
CNC	-	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
