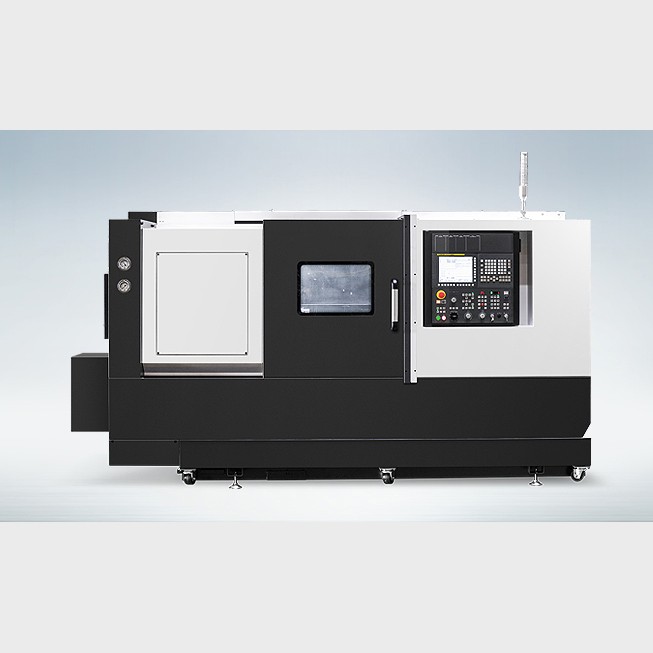

TCB26 | TCB26M | TCB26L | TCB26LM Turning Centers High Performance

Description

Features

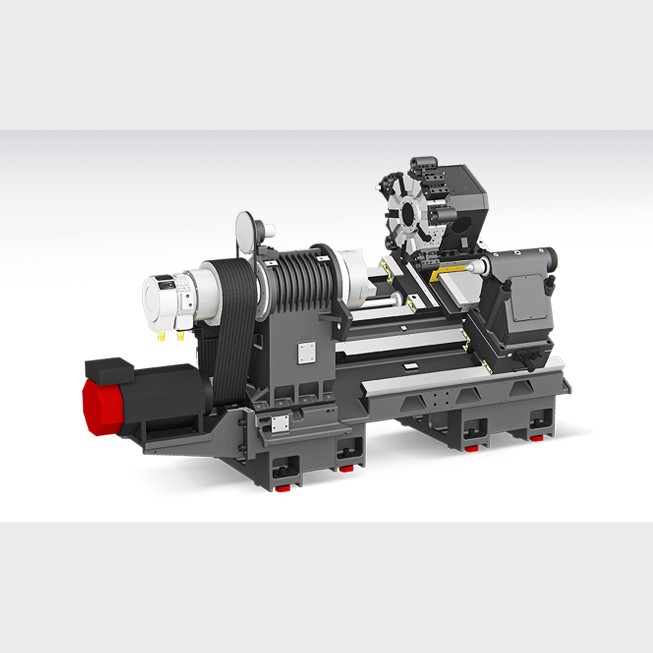

• • • • • • Box guideways for heavy-duty cutting
          • Stabilized unit structure to minimize thermal displacement
          • User convenient structure for high productivity
          • Excellent rapid traverse rate: 30m/min [1,181ipm] (Z-axis)

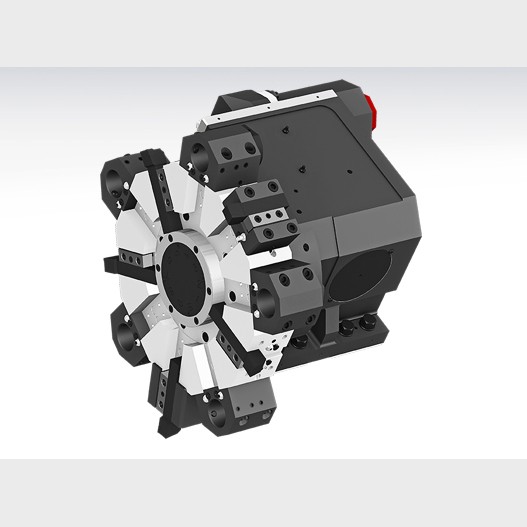

          • High-rigidity and high-speedd servo turret (Expanded disk width)



Specifications

Units of Measure: mm

Description	Unit	TCB26	TCB26M	TCB26L	TCB26LM
Max Turning Dia	mm	460	380	460	380
Max Turning Length	mm	659	613	1,079	1,033
Chuck Size	inch	10″	10″	10″	10″
Driving Method	-	Belt	Belt	Belt	Belt
Spindle RPM	r/min	3,500	3,500	3,500	3,500
Spindle Output	kW	26/18.5	26/18.5	26/18.5	26/18.5
Spindle Torque	N.m	734/522	734/522	734/522	734/522
Travel(X/Z)	mm	265/680	265/680	265/1,100	265/1,100
Rapid Travel(X/Z)	m/min	24/30	24/30	24/30	24/30
Slide Type	-	BOX	BOX	BOX	BOX
No. of Tools	EA	10	12	10	12
Tool Size	mm	25/50	25/40	25/50	25/40
Milling Tool Speed	r/min	-	6,000	-	6,000

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
