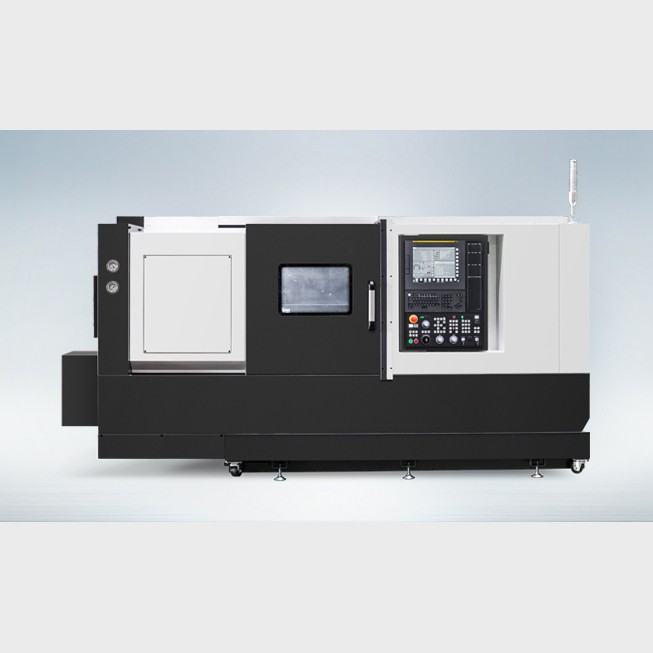

TCB31A | TCB31MA Turning Centers High Performance

Description

Features

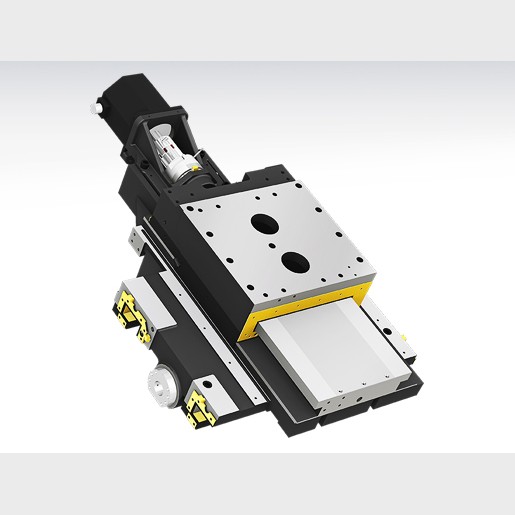

• Box guideways for heavy-duty cutting
• Stabilized unit structure to minimize thermal displacement
• User convenient structure for high productivity
• Excellent rapid traverse rate: 30m/min [1,181ipm] (Z-axis)

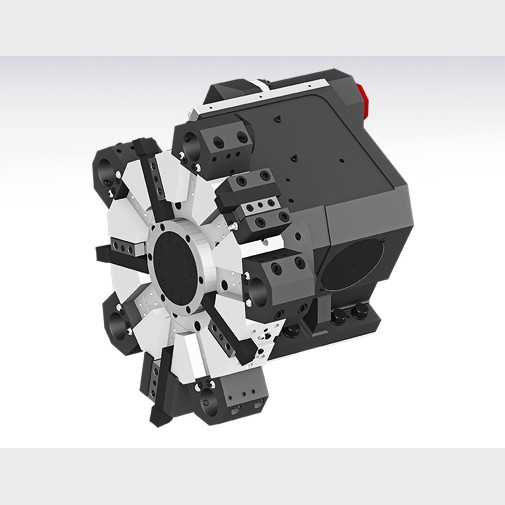

• High-rigidity and high-speed servo turret (Expanded disk width)

•


Specifications

Units of Measure: mm

Description	Unit	TCB31A	TCB31MA
Max Turning Dia	mm	500	420
Max Turning Length	mm	780	740
Chuck Size	inch	10″	10″
Driving Method	-	Belt	Belt
Spindle RPM	r/min	3,500	3,500
Spindle Output	kW	26/18.5	26/18.5
Spindle Torque	N.m	734/522	734/522
Travel(X/Z)	mm	265/830	265/830
Rapid Travel(X/Z)	m/min	24/30	24/30
Slide Type	-	BOX	BOX
No. of Tools	EA	10	12
Tool Size	mm	25/50	25/50
CNC	-	H/W FANUC i	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
