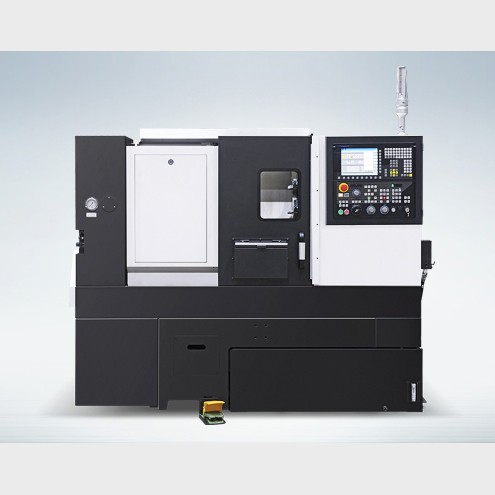

TP45 Turning Centers Compact

Product Item：TP45

Max Turning Dia: 165mm

Max Turning Length: 300mm

Chuck Size: 6''

Spindle RPM: 6,000r/min

Description

Features

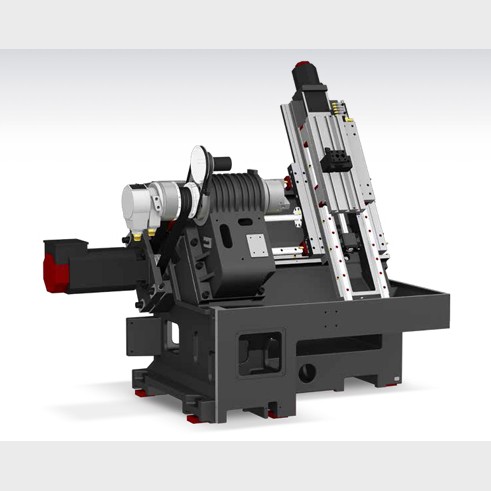

- - - 60° slanted one-piece rigid bed structure
    - Realization of high-precision product processing through the reduction of combined thermal displacement
    - Decrease in belt damage and vibration in the main shaft by reducing the length of the main shaft belt
    - Optimum design for automated response
    - Compact design, able to install within a narrow space

Specifications

Units of Measure: mm

Description	Unit	TP45
Max Turning Dia	mm	165
Max Turning Length	mm	300
Chuck Size	inch	6″
Driving Method	-	Belt
Spindle RPM	r/min	6,000
Spindle Output	kW	15/11
Spindle Torque	N.m	95.5/70
Travel(X/Z)	mm	450/300
Rapid Travel(X/Z)	m/min	30/36
Slide Type	-	LM
No. of Tools	EA	6
Tool Size	mm	20/32
CNC	-	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
