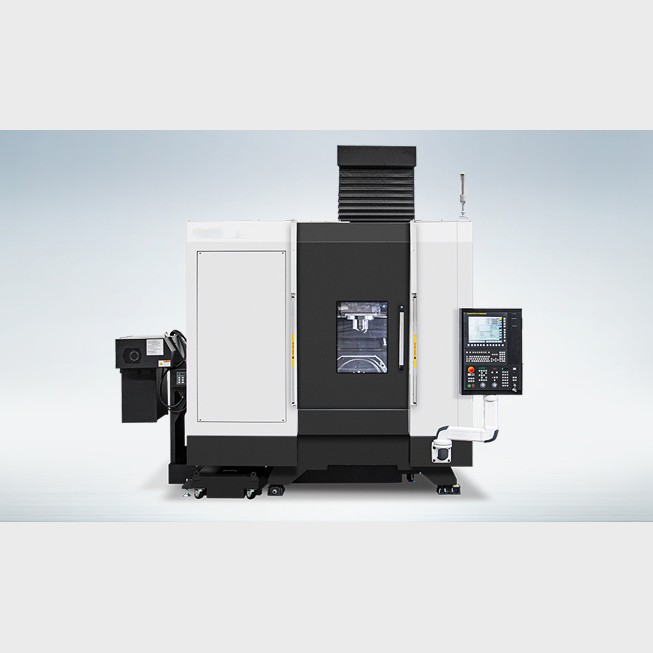

FM73 5-axis Vertical Machining Center

Product Item：FM73

Table Size: 630mm

Travel(X/Y/Z): 765/650/520mm

Spindle Taper: BBT40

No. of Tools: 40EA

Description

Features

- - - 5-axis table to satisfy various machining needs

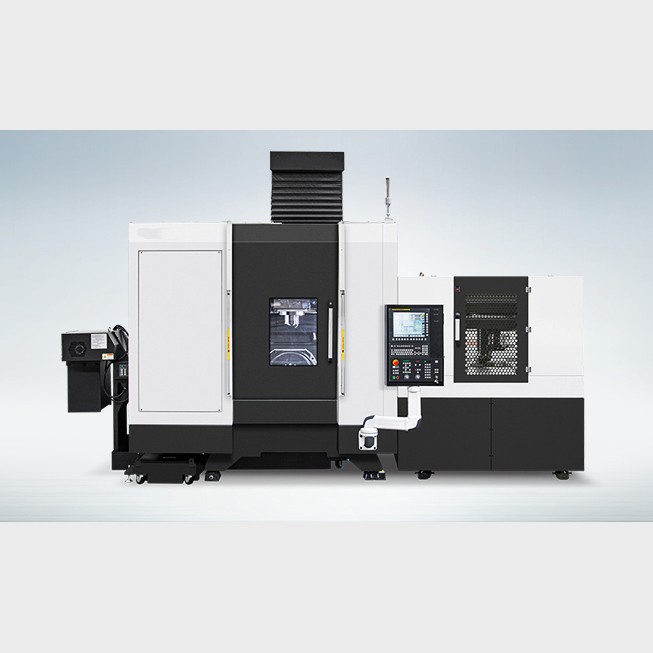

    - Column moving structure for automation system
    - High speed built-in spindle for the utmost quality machining
    - All axis roller type LM guide for high speed & rigidity
    - Improved user convenience by applying the latest controller of FANUC

Specifications

Units of Measure: mm

Description	Unit	FM73
Table Size	mm	630
Max. Load Capacity	kg	500
Spindle Driving Method	-	Built in
Spindle Taper	-	BBT40
Spindle RPM	r/min	12,000
Spindle Power	kW	22/18.5
Spindle Torque	N.m	204/119
Travel(X/Y/Z)	mm	765/650/520
Rapid Feed Rate(X/Y/Z)	m/min	40/40/40
Slide Type	-	LM
No. of Tools	EA	40
Tool Change Time (Chip To Chip)	sec	5.4

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
