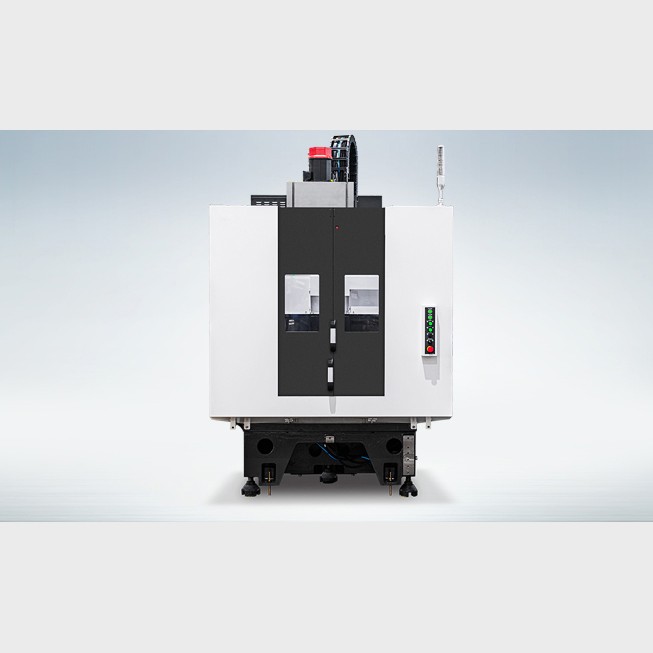

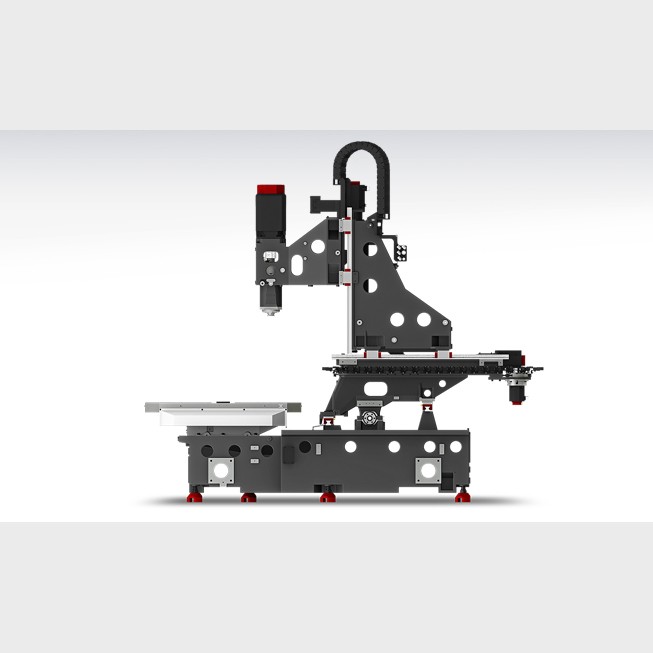

KV43D | KV52D | KV60D High Speed Machining Center

Description

Features

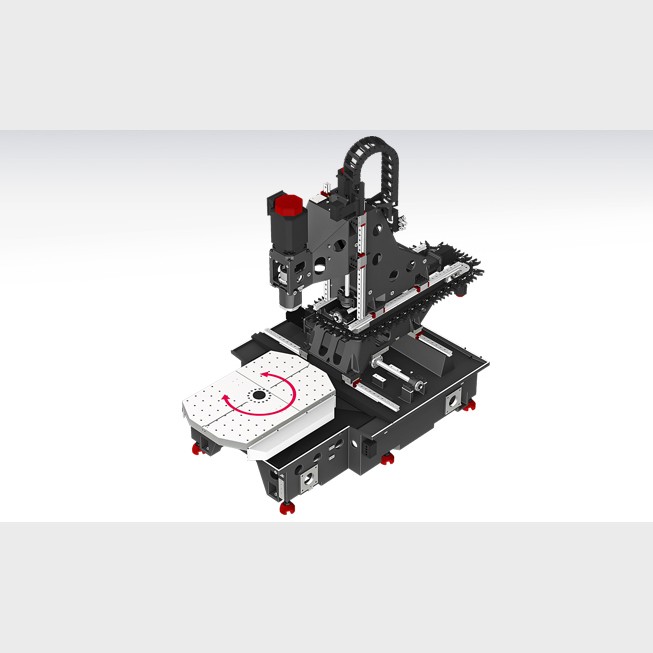

• • • Dual Tables for enhanced productivity
    • High-precision machining by improved spindle quality (Max. 15,000 rpm direct spindle)
    • High-speed roller type LM guide in all axis (Rapid Traverse Rate : 42 m/min)

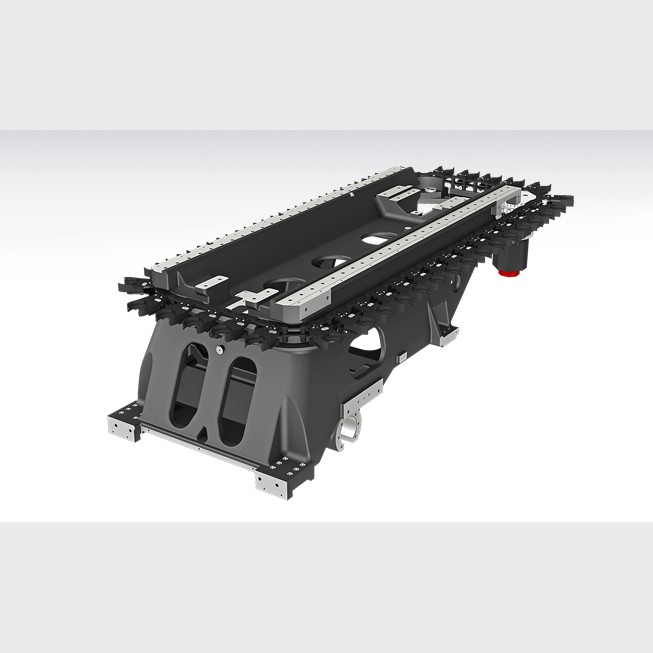

    • 42 Tool pickup type magazine application that does not require automatic tool loading device (KV60D: 45 Tool)
    • Improved user convenience by applying the latest controller of FANUC

Specifications

Units of Measure: mm

Description	Unit	KV43D	KV52D	KV60D
Table Size	mm	2 - 660×480	2 - 860×570	2 - 950×650
Max. Load Capacity	kg	2 - 300	2 - 350	2 - 500
Spindle Driving Method	-	Direct	Direct	Direct
Spindle Taper	-	BBT40	BBT40	BBT40
Spindle RPM	r/min	8,000	8,000	8,000
Spindle Power	kW	18.5/15	18.5/15	18.5/15
Spindle Torque	N.m	118/95.5	118/95.5	118/95.5
Travel(X/Y/Z)	mm	560/430/570	760/520/570	830/600/635
Rapid Feed Rate(X/Y/Z)	m/min	42/42/42	42/42/42	42/42/42
Slide Type	-	LM	LM	LM
No. of Tools	EA	42	42	45
Tool Change Time (Chip To Chip)	sec	4.6	4.7	4.8
CNC	-	H/W FANUC i	H/W FANUC i	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
