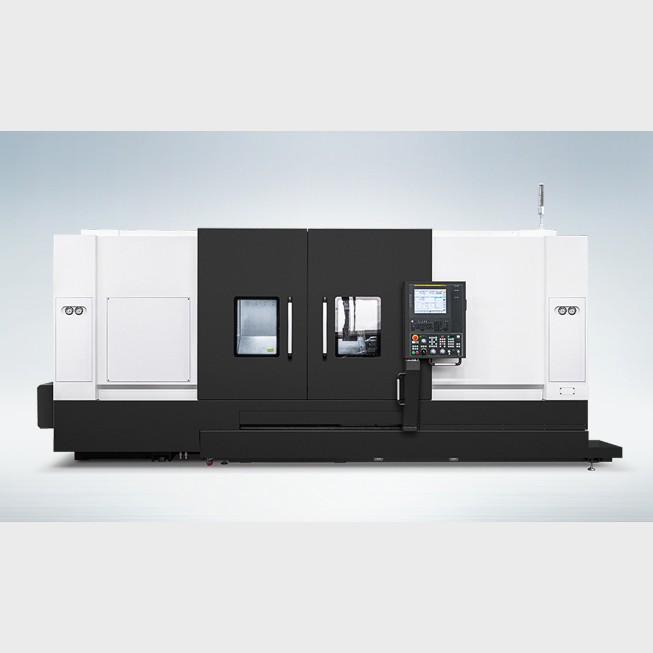

Description
Features
- Secures rigidity with box guideways for each shaft
- Max. turning length 2,070mm (81.5″) long bed structure

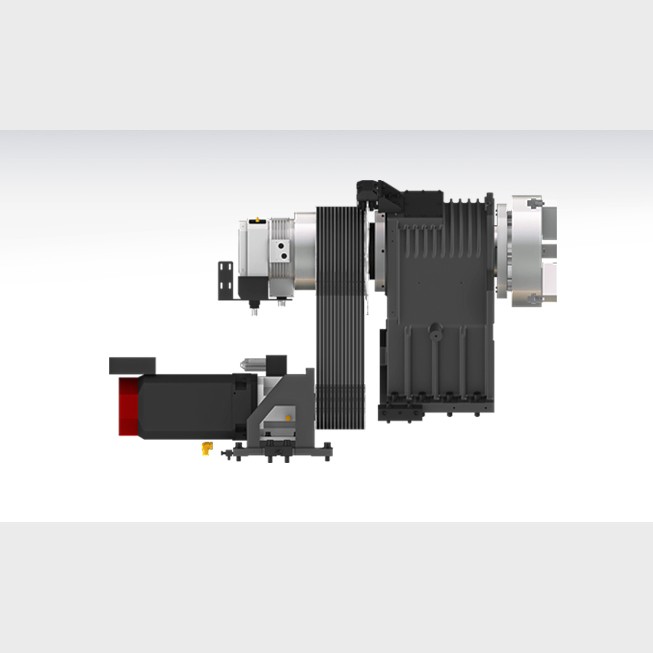

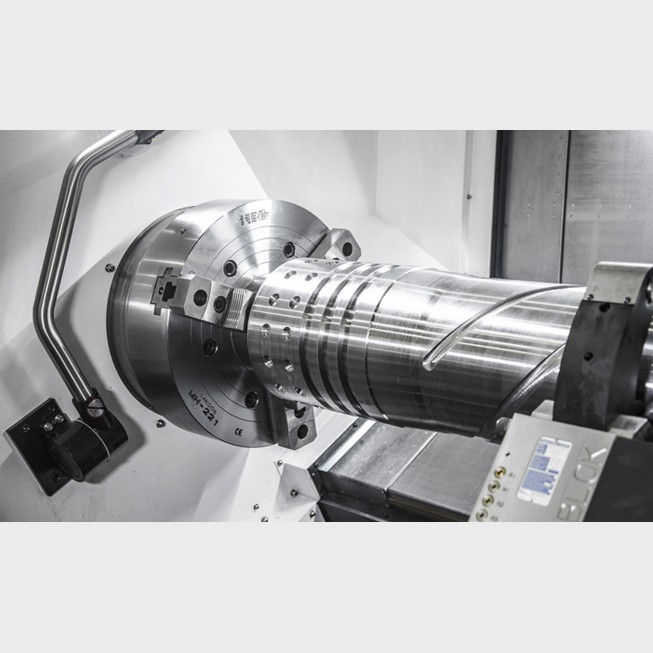

- 2 step gear box type main spindle
- Application of high-performance main spindle (TC50LC/LMC : Max. torque 4,486 N.m)

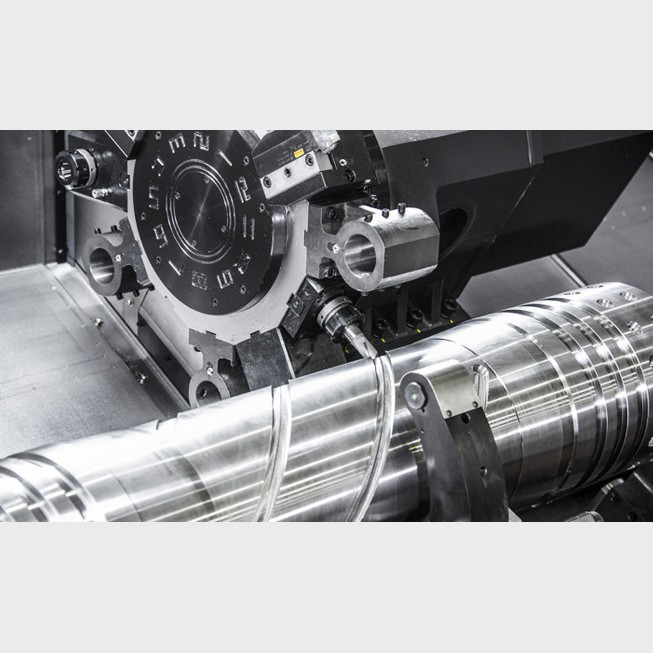

- Stable long shaft turning with steady rest option
Specifications
Units of Measure:
| Description | Unit | TC50L | TC50LM | TC50LC | TC50LMC |
|---|---|---|---|---|---|
| Max Turning Dia | mm | 760 | 690 | 760 | 690 |
| Max Turning Length | mm | 2,205 | 2,120 | 2,205 | 2,120 |
| Chuck Size | inch | 21″ | 21″ | 24″ | 24″ |
| Driving Method | - | GEAR | GEAR | GEAR | GEAR |
| Spindle RPM | r/min | 1,500 | 1,500 | 1,000 | 1,000 |
| Spindle Output | kW | 45/37 | 45/37 | 45/37 | 45/37 |
| Spindle Torque | N.m | 4,112/3,382 | 2,990/2,459 | 4,486/3,689 | 4,486/3,689 |
| Travel(X/Z) | mm | 400/2,255 | 400/2,170 | 400/2,255 | 400/2,170 |
| Rapid Travel(X/Z) | m/min | 20/18 | 20/18 | 20/18 | 20/18 |
| Slide Type | - | BOX | BOX | BOX | BOX |
| No. of Tools | EA | 12 | 12 | 12 | 12 |
| Tool Size | mm | 32/60 | 32/60 | 32/60 | 32/60 |
| Milling Tool Speed | r/min | - | 4,000 | - | 4,000 |
| CNC | - | H/W FANUC i | H/W FANUC i | H/W FANUC i | H/W FANUC i |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
