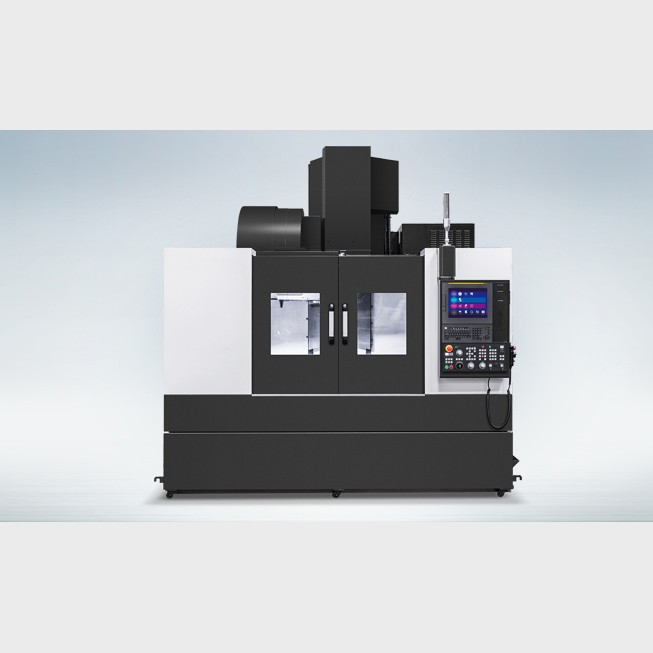

KV57BMAX | KV57B/5MAX Heavy-Duty Cutting Vertical Machining Center

Product Item：KV57BMAX | KV57B/5MAX

Table Size: 1,300×570mm

Travel(X/Y/Z): 1,100/570/520mm

Spindle Taper: BBT40/50

No. of Tools: 30/24EA

Description

Features

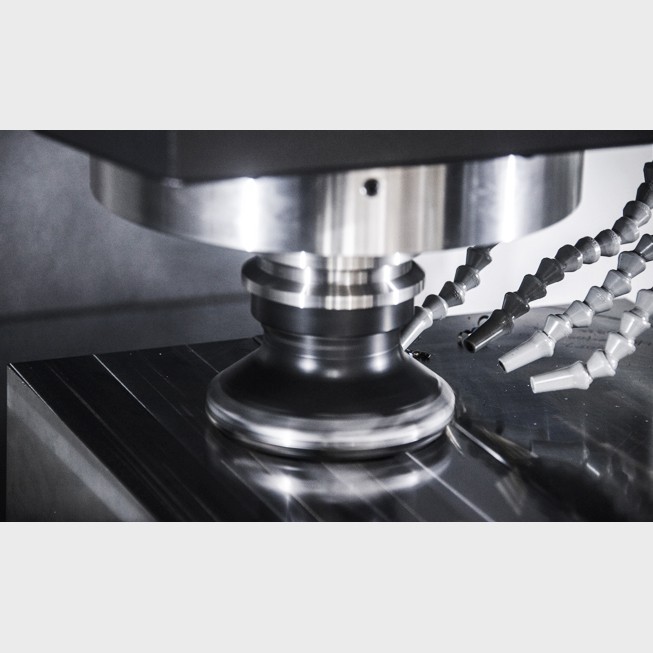

- - - High power/torque main spindle for superb heavy duty cutting
    - Box guideways for exceptional traveling during heavy duty cutting
    - Enhanced chip processing capabilities by applying the upper-type conveyor
    - Various motors and columns provided for customized machining
    - Improved user convenience by applying the latest controller of FANUC

Specifications

Units of Measure: mm

Description	Unit	KV57BMAX	KV57B/5MAX
Table Size	mm	1,300×570	1,300×570
Max. Load Capacity	kg	1,000	1,000
Spindle Driving Method	-	Direct	Direct
Spindle Taper	-	BBT40	BBT50
Spindle RPM	r/min	8,000	8,000
Spindle Power	kW	15/11	15/11
Spindle Torque	N.m	286/143	286/143
Travel(X/Y/Z)	mm	1,100/570/520	1,100/570/520
Rapid Feed Rate(X/Y/Z)	m/min	30/30/24	30/30/24
Slide Type	-	BOX	BOX
No. of Tools	EA	30	24
Tool Change Time (Chip To Chip)	sec	3.7	5.5
CNC	-	H/W FANUC i	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
