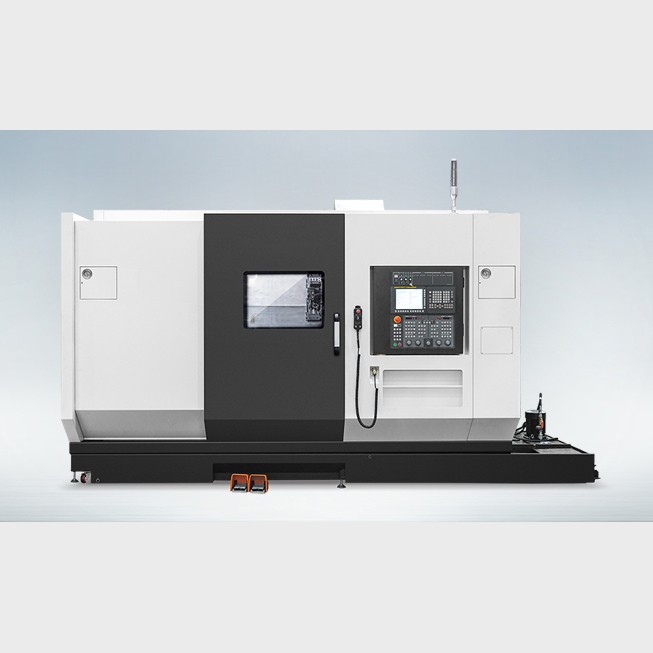

TCM25TTSYS-MAX Multi-Axis Turning Center

Description

Features

• • Twin spindle and twin turret for multiflexibility
  • Improved spindle power for heavy duty cutting (Max.torque : 724N.m)
  • Improved Mill Turret Machining Capability (Max.torque : 70N.m)
  • Increased Spindle Rod Machining Diameter
  • Box guideways on all axes for heavy duty cutting
  • Wedge Type Y-Axis Structure

Specifications

Units of Measure: mm

Description	Unit	TCM25TTSYS-MAX
Max Turning Dia	mm	390
Max Turning Length	mm	900
Chuck Size	inch	Main 10″ Sub 10″
Driving Method	-	Built in
Spindle RPM	r/min	4,000
Spindle Output	kW	30/22
Spindle Torque	N.m	724/410
Travel(X1/X2/Z1/Z2/ZB/Y)	mm	270/195/920/920/920/120
Rapid Travel(X1/X2/Z1/Z2/ZB/Y)	m/min	24/24/24/24/24/12
Slide Type	-	BOX
No. of Tools	EA	2 x 24
Tool Size	mm	25/40
Milling Tool Speed	r/min	5,000
CNC	-	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
