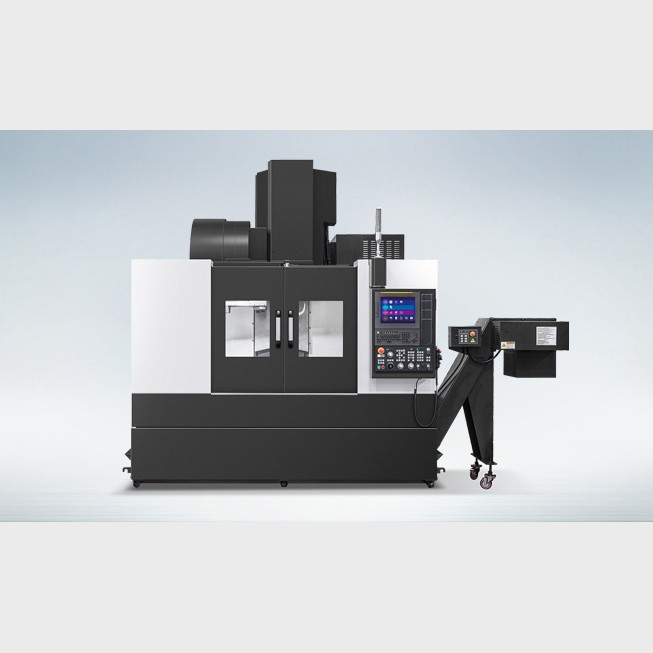

KV46MAX Series High Speed Machining Center

Description

Features

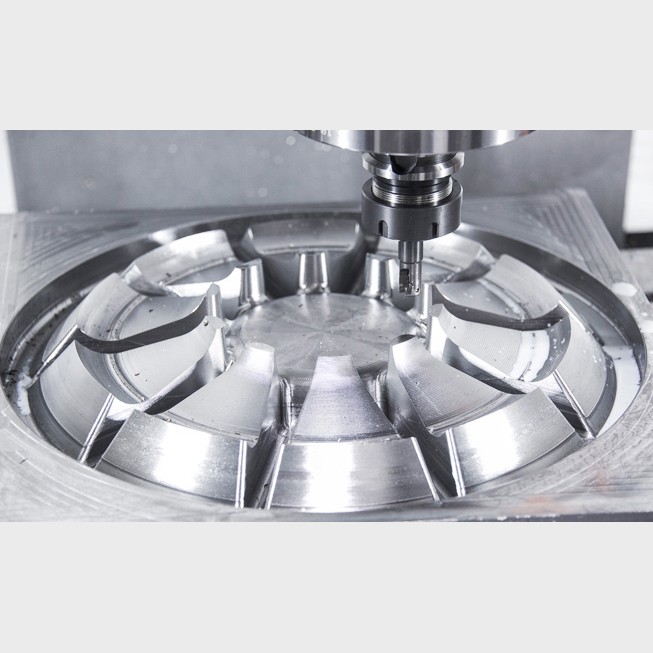

• High-precision machining by improved spindle quality

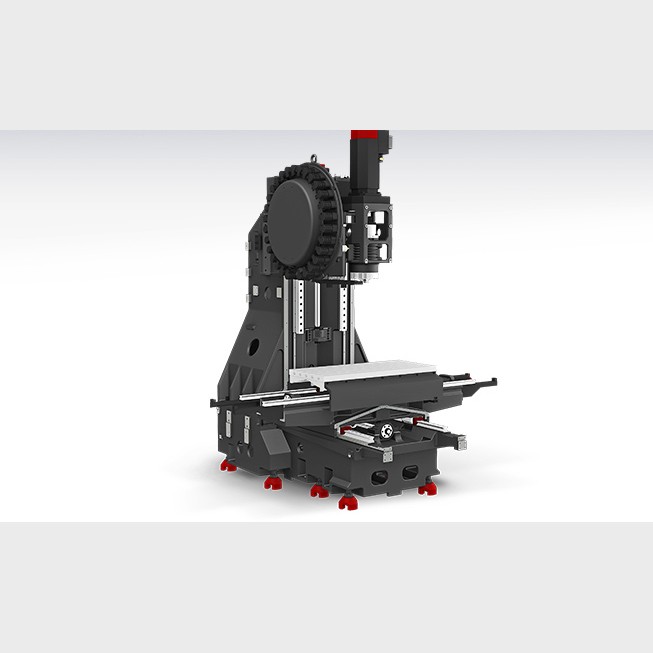

• High-speed roller type LM guide in all axes
• Enhanced chip disposal capabilities by applying the upper-type conveyor
• Various motors and columns provided for customized machining
• Improved user convenience by applying the latest controller of FANUC

Specifications

Units of Measure: mm

Description	Unit	KV46MAX(8k)	KV46MAX(8k-OPT1)	KV46MAX(10k-OPT2)	KV46MAX(12k-OPT3)
Table Size	mm	1050×460	1050×460	1050×460	1050×460
Max. Load Capacity	kg	600	600	600	600
Spindle Driving Method	-	Direct	Direct	Direct	Direct
Spindle Taper	-	BBT40	BBT40	BBT40	HSK-A63
Spindle RPM	r/min	8,000	8,000	10,000	12,000
Spindle Power	kW	18.5/11	15/11	18.5/11	18.5/11
Spindle Torque	N.m	118/52.5	286/143	118/52.5	118/52.5
Travel(X/Y/Z)	mm	900/460/520	900/460/520	900/460/520	900/460/520
Rapid Feed Rate(X/Y/Z)	m/min	36/36/30	36/36/30	36/36/30	36/36/30
Slide Type	-	LM	LM	LM	LM

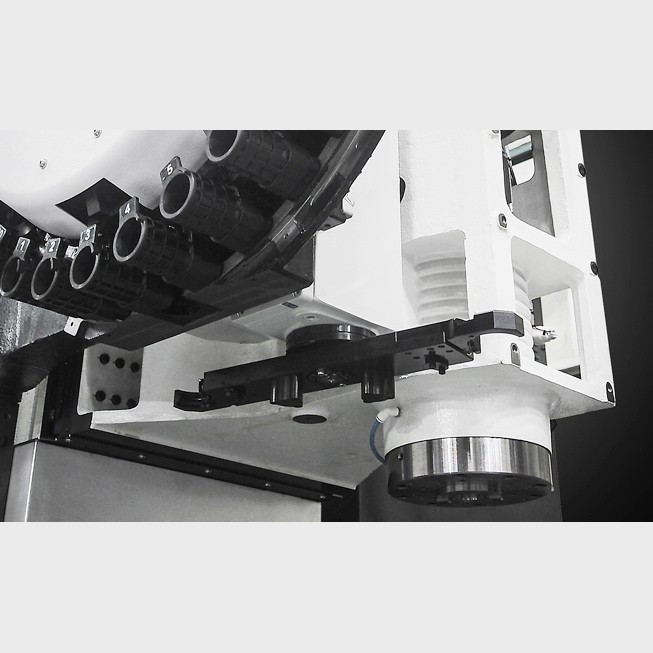

No. of Tools	EA	30	30	30	30
Tool Change Time (Chip To Chip)	sec	3.2	3.2	3.2	3.2
CNC	-	H/W FANUC i	FANUC 31i-B	FANUC 31i-B	FANUC 31i-B

Description	Unit	KV46MAX(15k-OPT)
Table Size	mm	1050×460
Max. Load Capacity	kg	600
Spindle Driving Method	-	Direct
Spindle Taper	-	HSK-A63
Spindle RPM	r/min	15,000
Spindle Power	kW	18.5/11
Spindle Torque	N.m	118/52.5
Travel(X/Y/Z)	mm	900/460/520
Rapid Feed Rate(X/Y/Z)	m/min	36/36/30
Slide Type	-	LM
No. of Tools	EA	30
Tool Change Time (Chip To Chip)	sec	3.2
CNC	-	FANUC 31i-B

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
