Description
Features
-
-
-
- Strengthened heavy-duty cutting ability with 2-step geared drive for tables

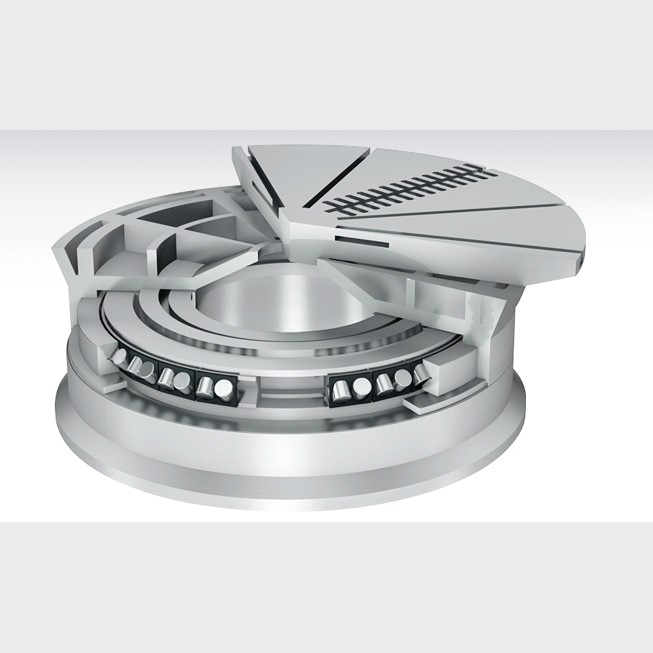

- Main spindle designed with cross roller bearing and box guideway in all axes bring rigidity

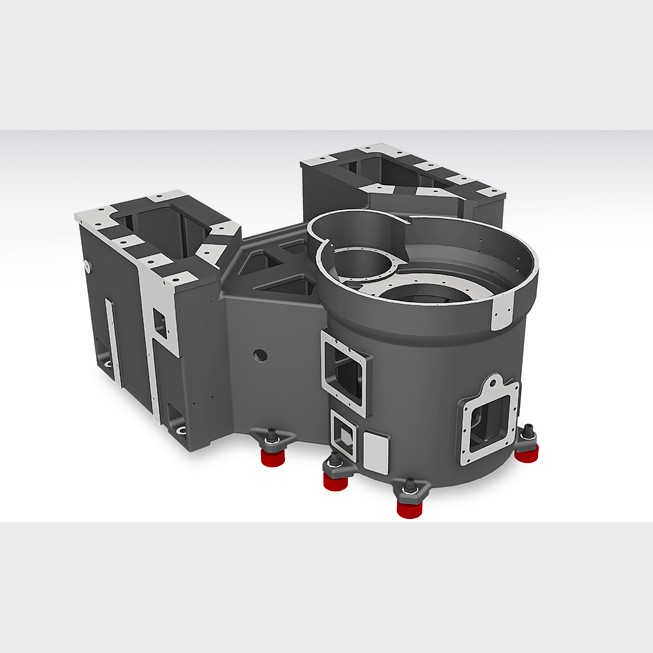

- Highly rigid table structure for heavy load
- Linear scale on all axes as standard
-
Specifications
Units of Measure:
| Description | Unit | TCV14 |
|---|---|---|
| Max Turning Dia | mm | 1,400 |
| Max Turning Length | mm | 850 |
| Chuck Size | inch | 40 |
| Driving Method | - | GEAR |
| Spindle RPM | r/min | 492 |
| Spindle Output | kW | 37/30 |
| Spindle Torque | N.m | 8,035/6,515 |
| Travel(X/Z) | mm | -50 ~ +825/800 |
| Rapid Travel(X/Z) | m/min | 12/12 |
| Slide Type | - | BOX |
| No. of Tools | EA | 12 |
| Tool Size | mm | 32/22 |
| CNC | - | F32i |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
