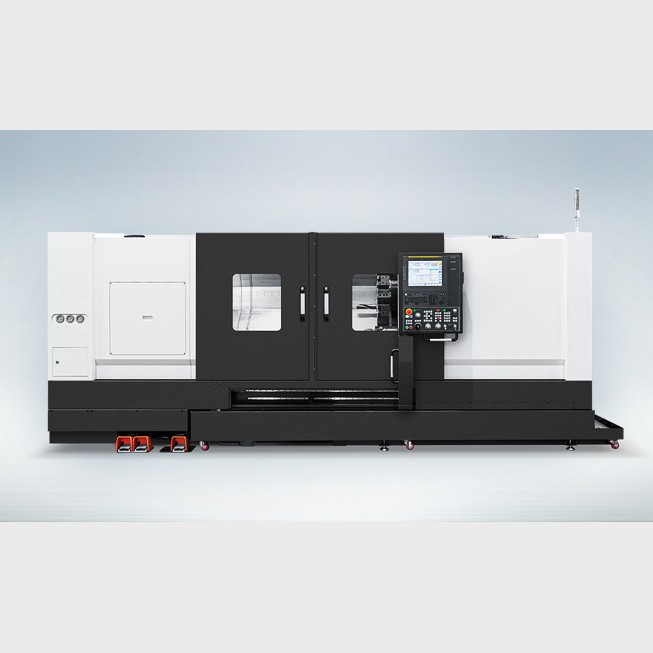

TC40L | TC40LM | TC40LC | TC40LMC Turning Centers High Performance

Description

Features

• • • • • Long bed structure with z-axis travel 2,200mm
        • Spindle Ideal for Heavy Cutting
        • 40% Improvement in torque compared to the previous model
        • Improvement in machining performance with application of Bzi sensor as standard

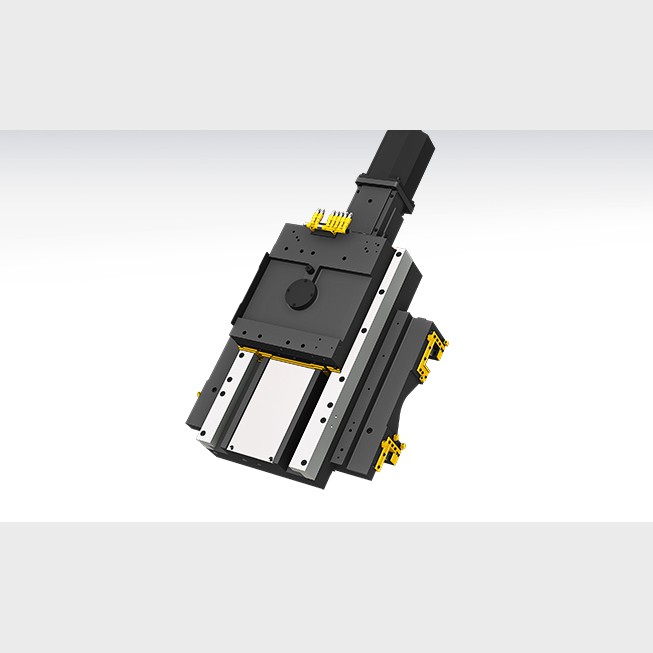

        • Rigidity secured through box guideways
        • Increased contact area between the saddle and cross-slide
        • Increased swing for machining large workpieces
        • Optional high performance geared spindle for TC40/L/M/LM (Max 2,000rpm/37kW/3,378N.m)

Specifications

Units of Measure: mm

Description	Unit	TC40L	TC40LM	TC40LC	TC40LMC
Max Turning Dia	mm	570	570	570	570
Max Turning Length	mm	2138	2053	2120	2035
Chuck Size	inch	15″	15″	21″	21″
Driving Method	-	GEAR	Belt	GEAR	GEAR
Spindle RPM	r/min	2,000	2,000	1,500	1,500
Spindle Output	kW	35	30	37	37
Spindle Torque	N.m	2,450	1,611	3,378	2,457
Travel(X/Z)	mm	330/2,200	330/2,200	330/2,200	330/2,200
Rapid Travel(X/Z)	m/min	16/20	16/20	16/20	16/20
Slide Type	-	BOX	BOX	BOX	BOX

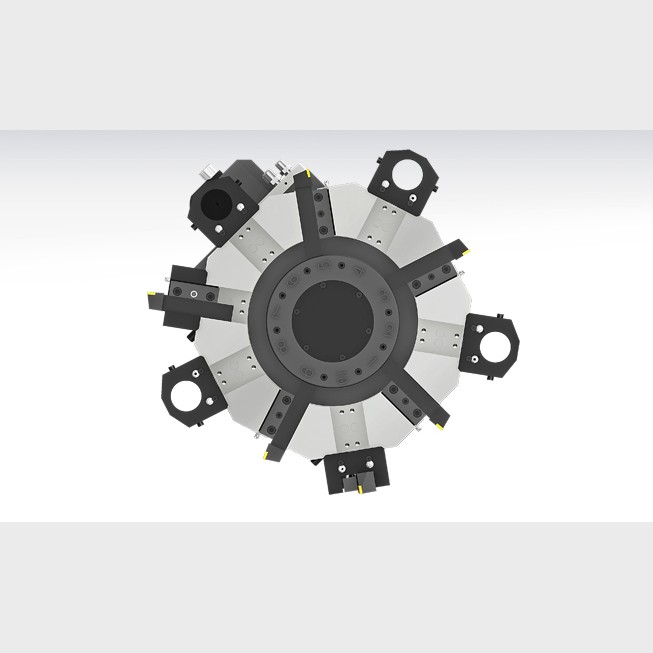

No. of Tools	EA	10	12	10	12
Tool Size	mm	32/60	32/60	32/60	32/60
Milling Tool Speed	r/min	-	4,000	-	4,000
CNC	-	H/W FANUC i	H/W FANUC i	H/W FANUC i	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
