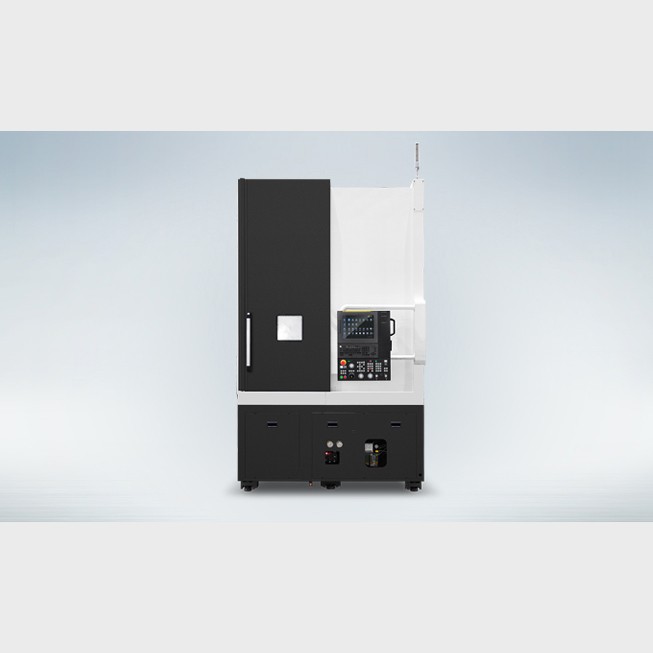

TCV85R/L | TCV85RM/LM Vertical Turning Center

Description

Features

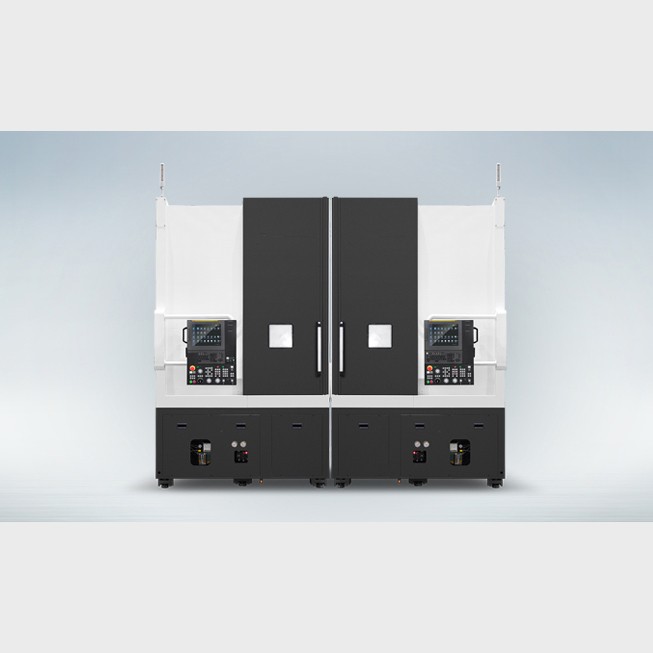

• • • • “Right” and “Left” structure for practical automation construction

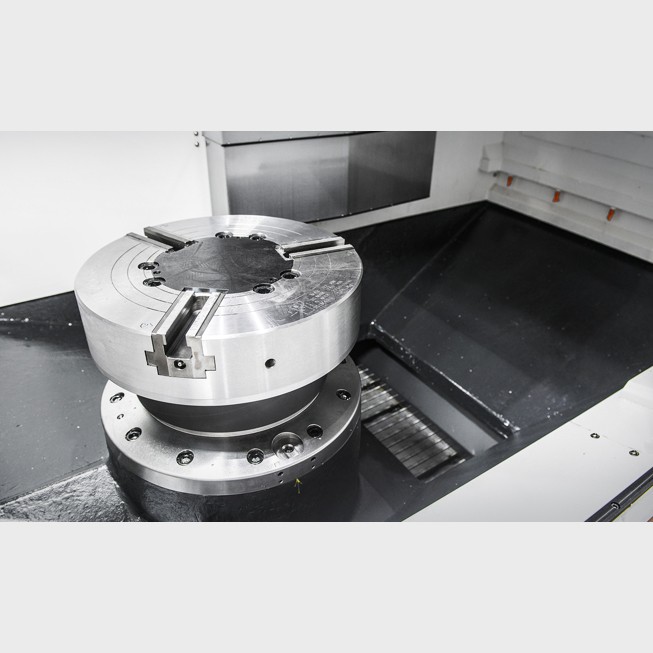

      • Stable spindle structure with excellent heavy duty cutting ability
      • 2 step pressure chucking system (Opt.)

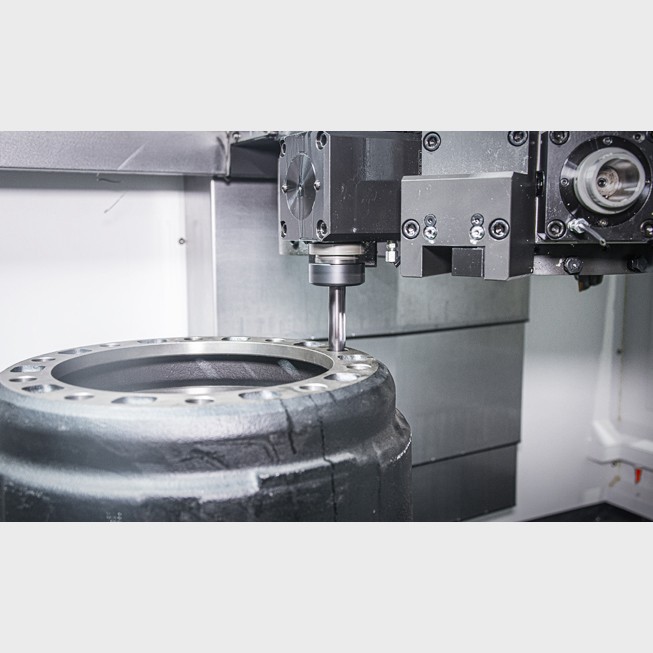

      • BMT turret applied for heavy duty cutting (Mill turret models)
      • Designed for optimal chip disposal



Specifications

Units of Measure: mm

Description	Unit	TCV85R/L	TCV85RM/LM
Max Turning Dia	mm	850	850
Max Turning Length	mm	800	800
Chuck Size	inch	18″	18″
Driving Method	-	Belt	Belt
Spindle RPM	r/min	2,000	2,000
Spindle Output	kW	37/22	37/22
Spindle Torque	N.m	1,660/986	1,660/986
Travel(X/Z)	mm	465/800	465/800
Rapid Travel(X/Z)	m/min	20/20	20/20
Slide Type	-	BOX	BOX
No. of Tools	EA	12	12
Tool Size	mm	32/63	32/63
Milling Tool Speed	r/min	-	4,000
CNC	-	H/W FANUC i	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
