Description
Features
-
- Single unit bed for X and Z axis for ultra-precision (HTK135)

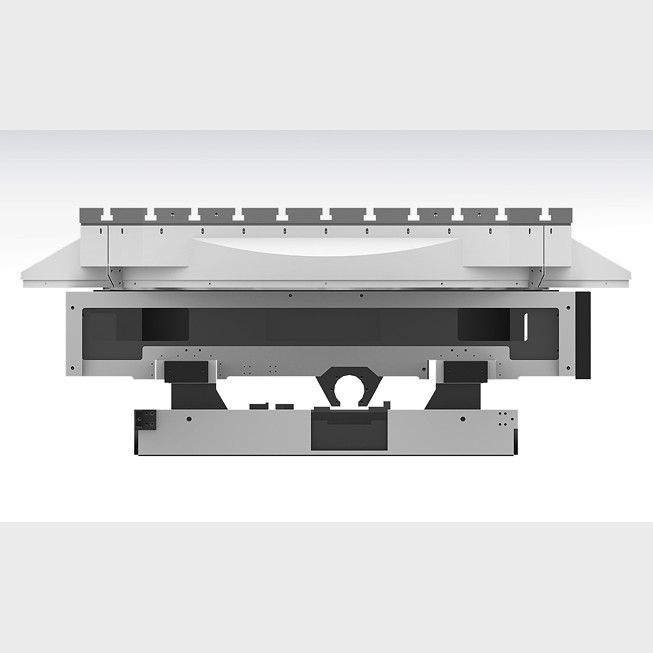

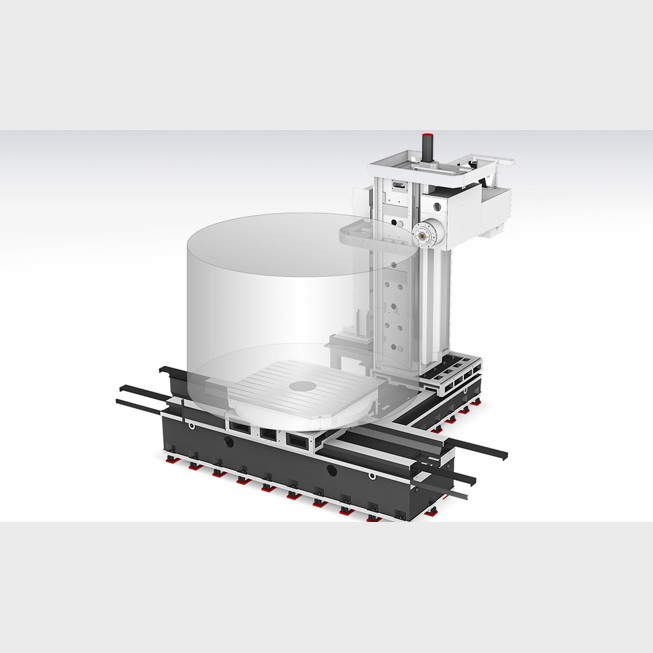

- Movable column structure for high-load, heavy duty cutting needs (HTK135C)
- Selectable X and Y axis of up to 1,000mm (39.3″) and 500mm (19.6″) respectively

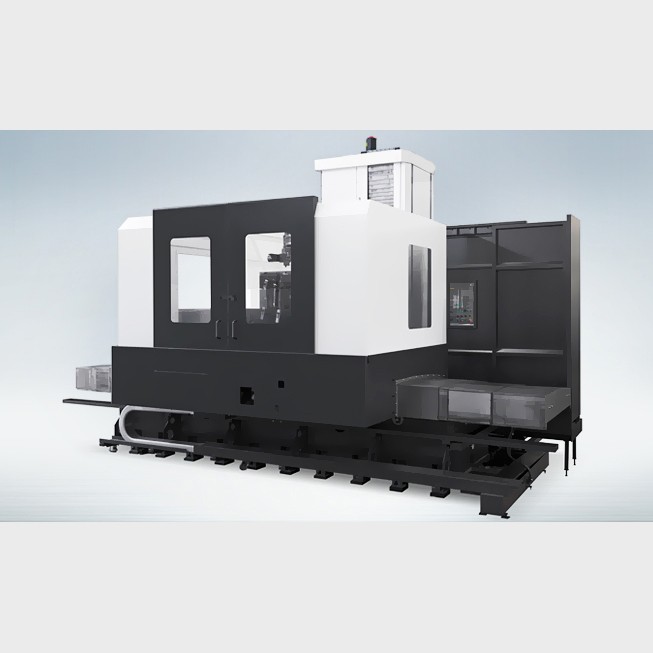

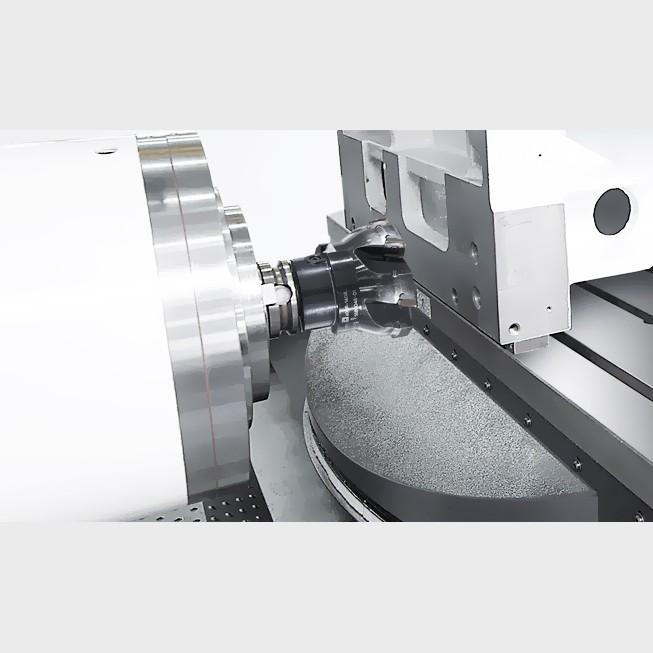

- 3-step gear drive main spindle for heavy duty cutting
- Optimal boring capability with W-axis maximum travel of 700mm(27.5″)
- Equipped with standard linear and rotary scales for ultra-precision
Specifications
Units of Measure:
| Description | Unit | HTK135C |
|---|---|---|
| Pallets Size | mm | 2,000×1,800 |
| Max. Load Capacity | kgf | 15,000 [20,000] |
| Spindle Driving Method | - | GEAR(3STEP) |
| Spindle Taper | - | BT50 |
| Spindle RPM | r/min | 2,000 |
| Spindle Power | kW | 22/18.5 |
| Spindle Torque | N.m | 3,112/2,617 |
| Travel(X/Y/Z) | mm | 3,000/2,000/1,600 |
| Travel(A/C) | deg | 700(W-axis) |
| Rapid Feed Rate(X/Y/Z) | m/min | 10/10/10 |
| Rapid Feed Rate(A/C) | r/min | 8(W-axis) |
| Slide Type | - | BOX |
| No. of Tools | EA | 40 |
|
Tool Change Time (Chip To Chip) |
sec | 33.2 |
| CNC | - | F31i |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
