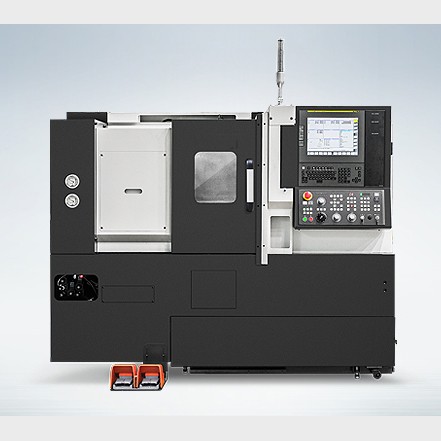

TC22A TC22LA TC22MA TC22LMA Turning Centers Compact

Description

Features

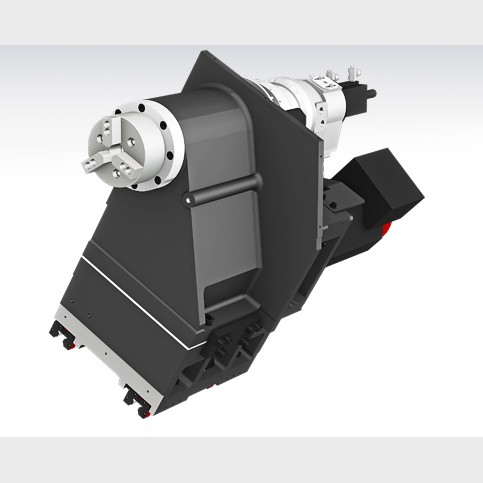

• • • • • 30° slanted one-piece bed structure with high rigidity
        • Ensured high-rigidity applying Roller guideway on all axes (X/Z-axis: 30/36m/min)
        • Improved user convenience by applying the latest controller of FANUC

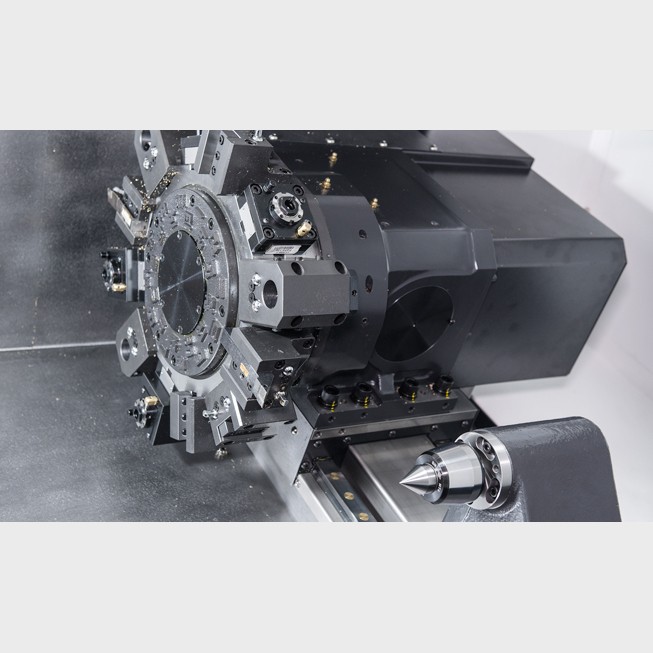

        • Prepared user-oriented lineup including long-bed, mill turret and sub-spindle

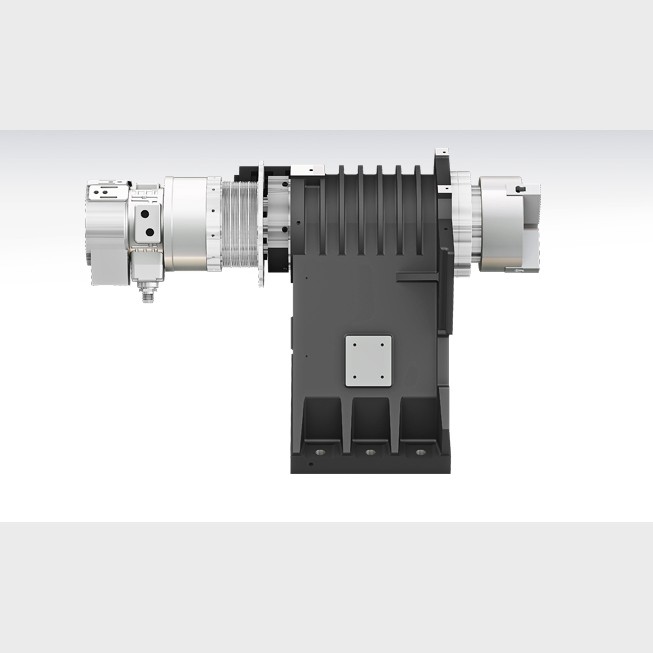

        • Compact structure with internal-motor design (for standard-type bed)
        • Ergonomic design for convenient access to chuck and tool



Specifications

Units of Measure: mm

Description	Unit	TC22A	TC22LA	TC22MA	TC22LMA
Max Turning Dia	mm	350	350	300	300
Max Turning Length	mm	340	560	309	529
Chuck Size	inch	6″	6″	6″	6″
Driving Method	-	Belt	Belt	Belt	Belt
Spindle RPM	r/min	6,000	6,000	6,000	6,000
Spindle Output	kW	15/11	15/11	15/11	15/11
Spindle Torque	N.m	127/70	127/70	127/70	127/70
Travel(X/Z)	mm	210/340	210/560	210/340	210/560
Rapid Travel(X/Z)	m/min	30/36	30/36	30/36	30/36
Slide Type	-	LM	LM	LM	LM
No. of Tools	EA	12	12	12	12
Tool Size	mm	25/40	25/40	20/32	20/32
Milling Tool Speed	r/min	-	-	6,000	6,000
CNC	-	H/W FANUC i	H/W FANUC i	H/W FANUC i	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
