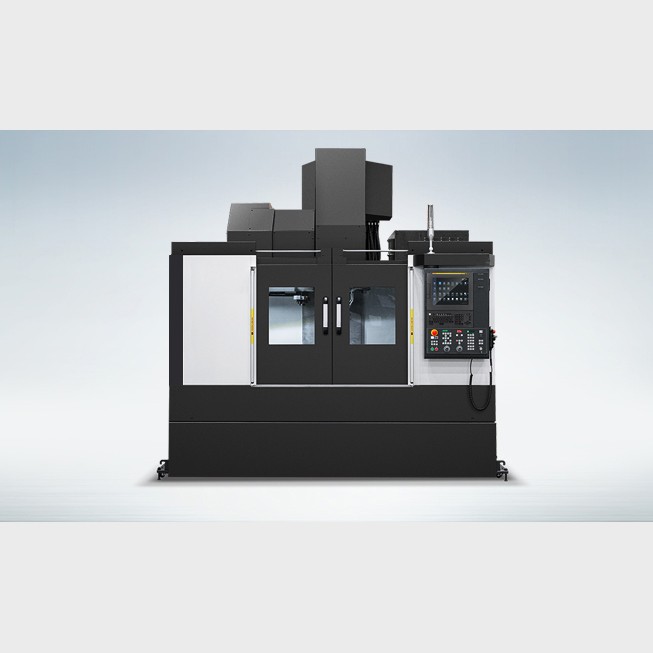

KV5 Series High Speed Machining Center

Product Item：KV5 Serie

Table Size: 1300×560mm

Travel(X/Y/Z): As below

Spindle Taper: BBT40

No. of Tools: 30EA

Description

Features

- - High-precision machining by improved spindle quality

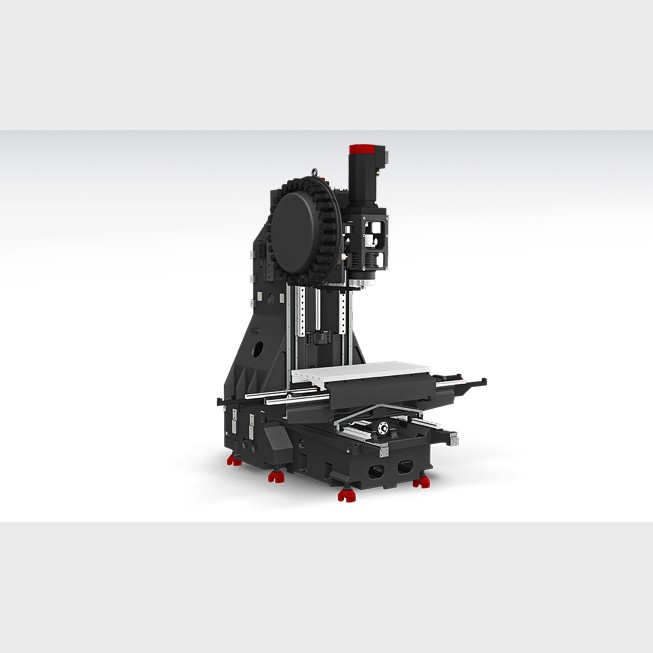

  - High-speed roller type LM guide in all axis
  - Enhanced chip processing capabilities by applying the upper-type conveyor
  - Various motors and columns provided for customized machining
  - Improved user convenience by applying the latest controller of FANUC

Specifications

Units of Measure: mm

Description	Unit	KV5(8k)	KV5(8k-OPT1)	KV5(10k-OPT2)	KV5(12k-OPT3)	KV5(15k-OPT1)	KV5(20k-OPT2)
Table Size	mm	1300×560	1300×560	1300×560	1300×560	1300×560	1300×560
Max. Load Capacity	kg	1,000	1,000	1,000	1,000	1,000	1,000
Spindle Driving Method	-	Direct	Direct	Direct	Direct	Direct	Built in
Spindle Taper	-	BBT40	BBT40	BBT40	HSK-A63	BBT40	BBT40
Spindle RPM	r/min	8,000	8,000	10,000	12,000	15,000	20,000
Spindle Power	kW	18.5/11	15/11	18.5/11	18.5/11	18.5/11	22/18.5
Spindle Torque	N.m	118/52.5	286/143	118/52.5	118/52.5	118/52.5	98/80
Travel(X/Y/Z)	mm	1050/560/510	1050/560/510	1050/560/510	1050/560/510	1050/560/510	1050/560/510
Rapid Feed Rate(X/Y/Z)	m/min	36/36/30	36/36/30	36/36/30	36/36/30	36/36/30	36/36/30
Slide Type	-	LM	LM	LM	LM	LM	LM
No. of Tools	EA	30	30	30	30	30	30
Tool Change Time (Chip To Chip)	sec	3.2	3.2	3.2	3.2	3.2	3.2

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
