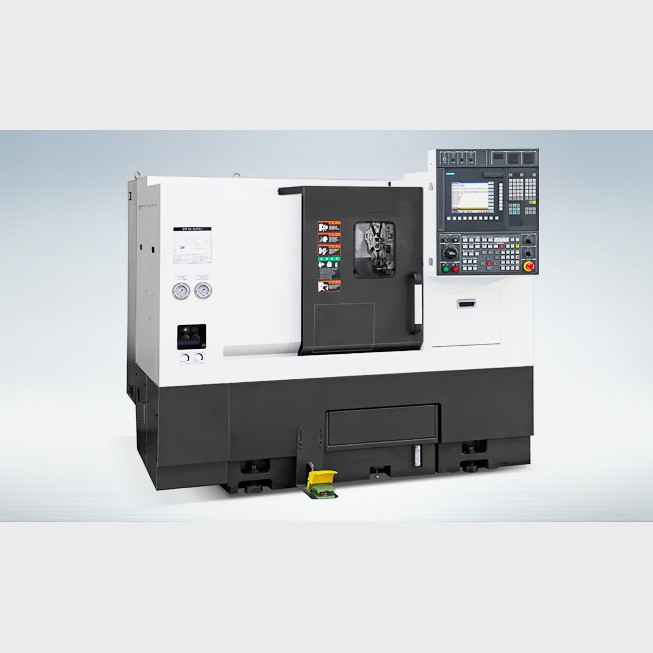

TC16C Turning Centers Compact

Product Item：TC16C

Max Turning Dia: 280mm

Max Turning Length: 280mm

Chuck Size: 8''

Spindle RPM: 4,000r/min

Description

Features

- 45° slanted one-piece rigid bed structure
- Minimal thermal distortion
- Machine structure designed to maximize productivity
- Best in class rapid traverse rate : 30m/min

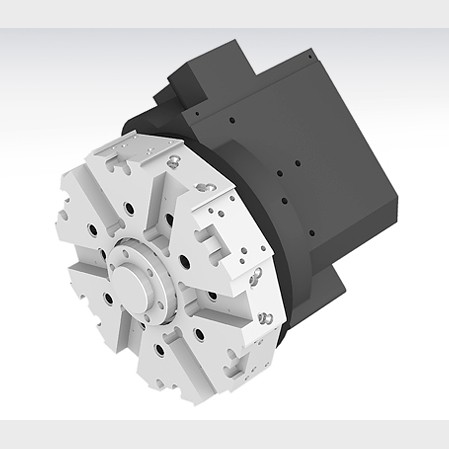

- The most reliable high speed servo turret : 0.1sec/step
- Environmental friendly, separate coolant and lubrication design
- Compact design, able to install within a limited space.
- Ergonomic design allows convenient access to chuck and tools

Specifications

Units of Measure: mm

Description	Unit	TC16C
Max Turning Dia	mm	280
Max Turning Length	mm	280
Chuck Size	inch	8″
Driving Method	-	Belt
Spindle RPM	r/min	4,000
Spindle Output	kW	11/7.5
Spindle Torque	N.m	64.4/126
Travel(X/Z)	mm	165/330
Rapid Travel(X/Z)	m/min	30/30
Slide Type	-	LM
No. of Tools	EA	10
Tool Size	mm	25/32
CNC	-	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
