Description
Features
-
-
-

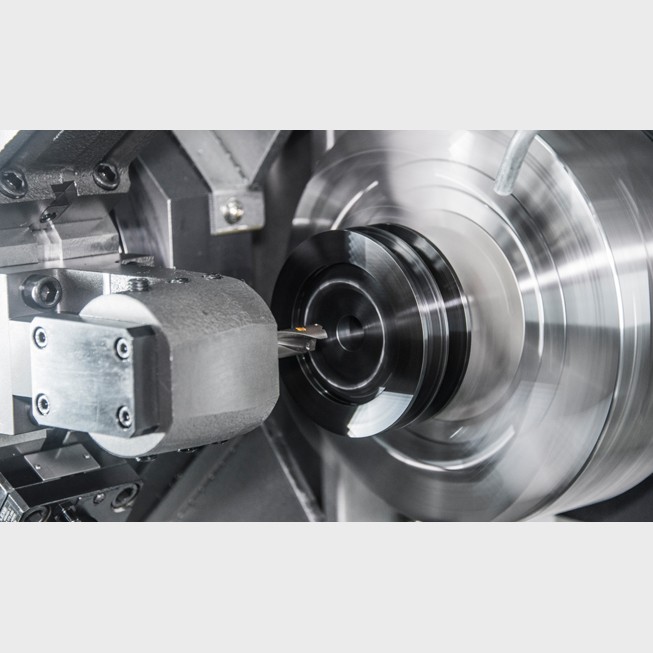

- Increased rigidity by improving Z-axis structure
Selection between roller LM guide and box guide way

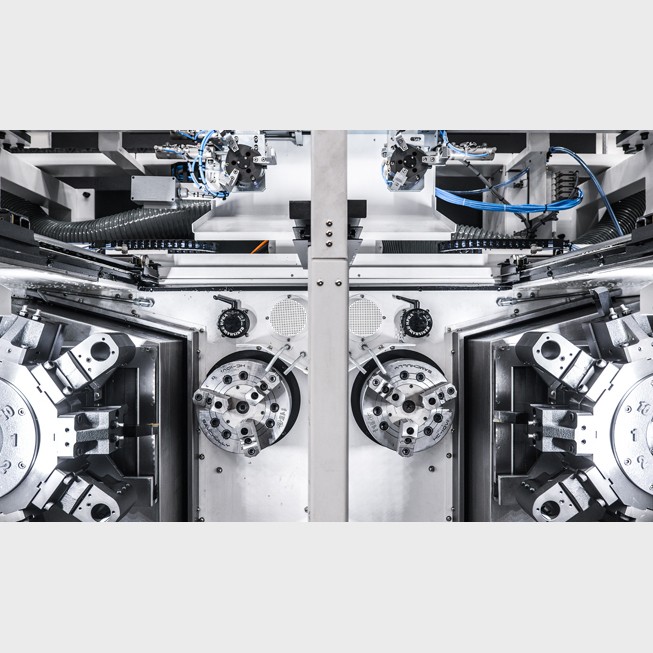

Stable unit composition with minimized thermal deformation

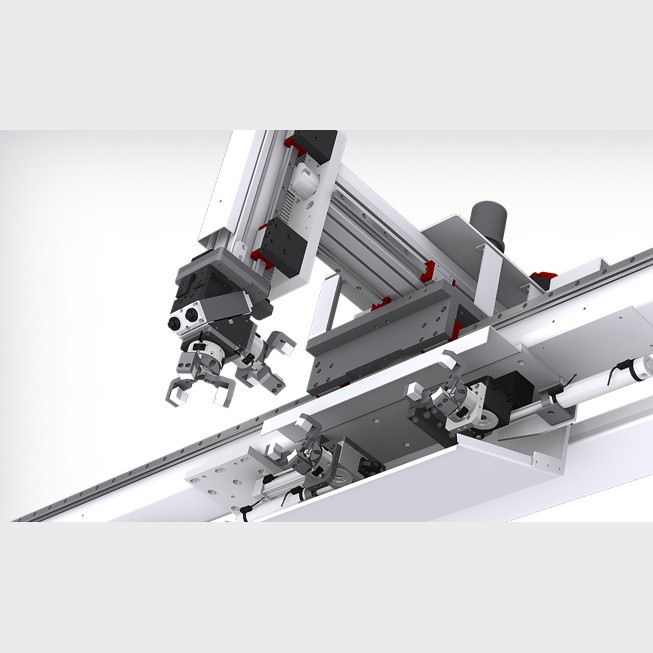

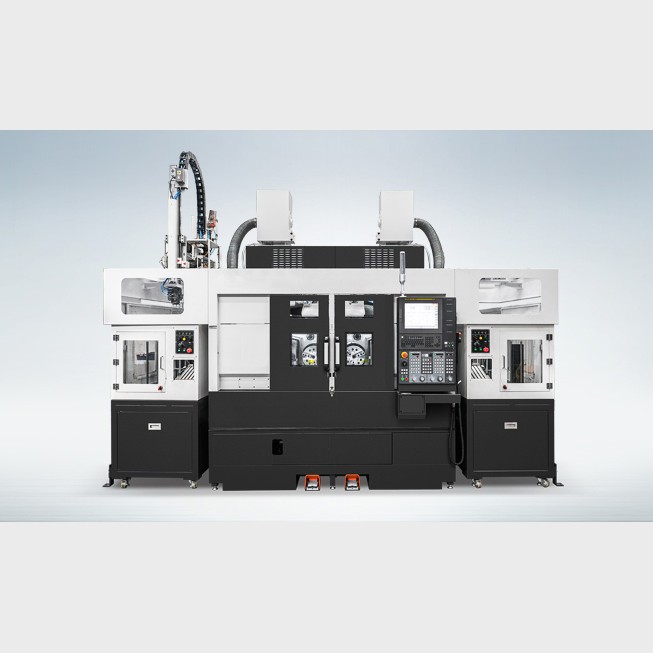

Various types of gantry loader ensure effective & flexible automation
A pleasant working environment by improving chip disposal ability
Enhanced convenience by applying Fanuc’s latest controller
- Increased rigidity by improving Z-axis structure
-
-
Specifications
Units of Measure:
Description | Unit | TCF22 Max | TCF22Q Max | TCF22M MAX | TCF22MQ MAX |
---|---|---|---|---|---|
Max Turning Dia | mm | 260 | 260 | 260 | 260 |
Max Turning Length | mm | 170 | 170 | 170 | 170 |
Chuck Size | inch | 8″ | 8″ | 8″ | 8″ |
Driving Method | - | Belt | Belt | Belt | Belt |
Spindle RPM | r/min | 4,500 | 4,500 | 4,500 | 4,500 |
Spindle Output | kW | 15/11 | 15/11 | 15/11 | 15/11 |
Spindle Torque | N.m | 127/70 | 127/70 | 127/70 | 127/70 |
Travel(X/Z) | mm | 140/170 | 140/170 | 140/170 | 140/170 |
Rapid Travel(X/Z) | m/min | 24/24 | 24/24 | 24/24 | 24/24 |
Slide Type | - | BOX | LM | BOX | LM |
No. of Tools | EA | 2 x 8 | 2 x 8 | 2 x 10 | 2 x 10 |
Tool Size | mm | 20/32 | 25/40 | 25/40 | 25/40 |
Milling Tool Speed | r/min | - | - | 6000 | 6000 |
CNC | - | H/W FANUC i | H/W FANUC i | H/W FANUC i | H/W FANUC i |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
